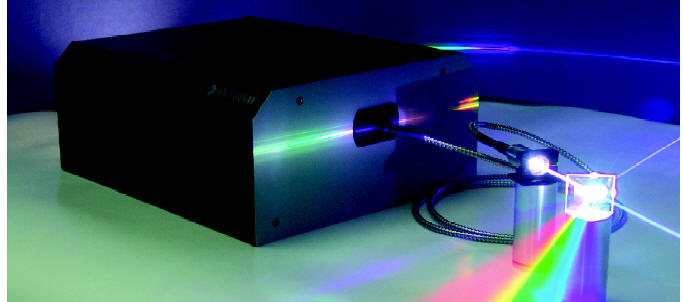

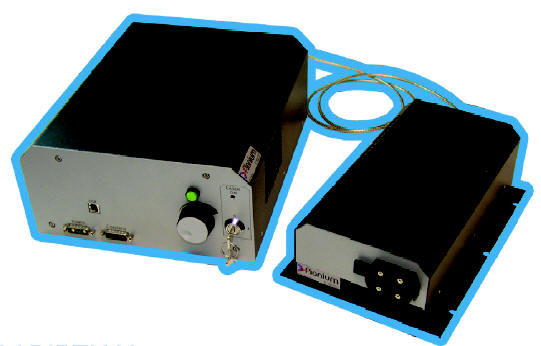

§ Ultrafast Laser System IR ~ UV / C.W. with Broadband Output ( 400 nm ~ 2400 nm )

The laser systems take advantage of high peak power of output pulses to generate white light or second, third even fourth harmonics.

¤ Low Power Fibre Lasers

Wavelength (nm)	Power (W)	Pulse duration (ps)	Pulse Energy (nJ)	Repetition Rate (MHz)
1064	<0.01	5-15	<0.5	20-100
1064	0.1	5-15	<5	20-100

　

¤ High Power Ultrafast Fibre Laser Systems

Wavelength (nm)	Power (W)	Pulse duration (ps)	Pulse Energy (nJ)	Repetition Rate (MHz)
1064	1	5-15	10-50	20-100
1064	10	5-15	100-250	40-100
1064	20	5-15	200-500	40-100

　

¤ High Pulse Energy Ultrafast Fibre Laser Systems

Wavelength (nm)	Power (W)	Pulse duration (ps)	Pulse Energy (μJ)	Repetition Rate (MHz)
1064	20	20	1	20
1064	20	<1	1	20
1064	<20	<20	1-4	1-20

　

¤ Femtosecond Fibre Laser Systems

Wavelength (nm)	Power (W)	Pulse duration (ps)	Pulse Energy (nJ)	Repetition Rate (MHz)
1064	0.5	<0.3	12	40
1064	1	<0.3	25	40
1064	5	<0.3	125	40

　

¤ Optical Supercontinuum Systems

Wavelength (nm)	Power (W)	Pulse duration (ps)	Beam quality (M²)	Repetition Rate (MHz)
400-2000	4	5	<1.1	20
400-2400	4	5	<1.1	0.1-40
450-2000	2	0.4-10	<1.1	20
450-2000	4	0.4-10	<1.1	40
450-2000	6	0.4-10	<1.1	50
450-700	0.1	20	<1.1	40

　

¤ UV Fibre Laser Systems

Wavelength (nm)	Power (W)	Pulse duration (ps)	Repetition Rate (MHz)
532	0.5	5-15	40-400
532	5	5-15	40-400
355	3	<10	100
355	3	<8	200
355	3	<6	400
266	0.5	<10	100
266	0.5	<8	200
266	0.5	<6	400

　

¤ High Brightness Pump for Fibre Lasers

　

　

　
