FEMTOSECOND Yb:KGW LASER
SPECIFICATIONS
Specifications are
subject to charge without notice
|
Adive medium |
Yb : KGW |
|
Wavelength,nm |
1040+ - 10 |
|
Average output power, W |
>=1 |
>=5 |
|
PRR,MHz |
75* |
50* |
|
Energy per pulse,nJ |
>=13 |
>=100 |
|
Pulse width (FWHM),fs |
<=200 |
<=400 |
|
Spectral linewidth,nm |
>=4 |
>=2 |
|
Beam quality |
TEM00 ; M2 <=1.5 |
TEM00 ; M2 <=1.5 |
|
Output stability,% |
<=3 |
|
Polarisation |
Linear (Horizontal**) |
* Other PRR values can be provided
upon (optional)
**Vertically polarised output
radiation can be provided upon request(optional)

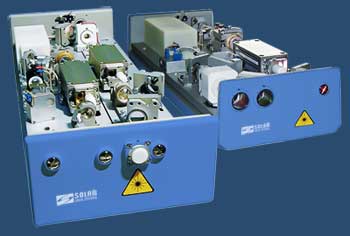

COMPACT PULSED Nd:YAG LASERS
SPECIFICATIONS
Specifications are
subject to charge without notice
|
Configuration |
Oscillator only |
Oscillator + Amplifier |
|
Pulse repetition rate, Hz |
5 |
10 |
10 |
20 |
50 |
10 |
10 |
|
Output
energy,mJ |
|
|
at 1064nm |
500 |
500 |
350 |
350 |
150 |
1000 |
1400 |
|
at 532nm
1),3) |
280 |
280 |
190 |
190 |
80 |
550 |
800 |
|
at 355nm
1),4) |
110 |
100 |
90 |
90 |
40 |
220 |
300 |
|
at 266nm 1),3) |
100 |
70 |
60 |
40 |
16 |
120 |
180 |
|
at 213nm 2),4) |
25 |
20 |
15 |
12 |
5 |
40 |
50 |
|
Pulsewidth,nsec5) |
10...13 |
8...11 |
|
Beam diameter,mm |
<=8 |
<=6 |
<=5 |
<=10 |
<=11 |
|
Divergence,mrad |
~1.5 |
~1.3 |
~1.5 |
|
Stability,+-%,better than5) |
2.5 |
|
Colling |
self-contained water-air cooling system |
1) Harmonic generators are buit in
the laser head
2) When operated
with harmonic generator
3) When SHG is optimized
4) When THG is optimized
5) At 1064nm
6) With respect to extemal trigger

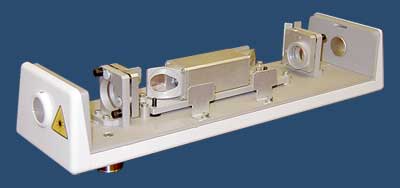

SOLID-STATE RAMAN SHIFTER
SPECIFICATIONS
Specifications are
subject to charge without notice
|
Pump laser type |
Pump wavelength,nm |
Active medium* |
Output wavelength,nm |
| 1st
Stoks |
2nd
Stoks |
3rd
Stoks |
|
Nd ; YAG |
532
|
1
2
3 |
555
559
583 |
579
588
599 |
606
621
639 |
|
1064
|
1
2
3 |
1159
1177
1197 |
1272
1317
1369 |
1409
1494
1598 |
|
1318
|
1
2
3 |
1466
1496
1529 |
1652
1729
1820 |
-
-
- |
|
Ruby |
694 |
1
2
3 |
733
740
748 |
777
793
812 |
826
854
887 |
|
Ti : sapphire |
750...950 |
1
2
3 |
796...1025
804...1039
814...1055 |
848...1112
867...1142
890...1186 |
907...1216
941...1279
981...1354 |
|
Forsterite |
1200...1300 |
1
2
3 |
1322...1444
1346...1473
1372...1505 |
1471...1624
1531...1698
1603...1786 |
-
-
- |

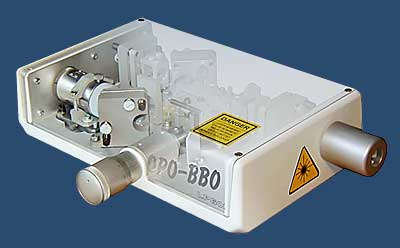

OPO SYSTEMS
SPECIFICATIONS
Specifications are
subject to charge without notice
|
Non-linear crystal |
BBO |
|
Tuning,range,nm
singal+idler
second harmonic |
410...2500
- |
410...2500
210...420 |
680...2500
- |
|
max total conversion efficiency1) |
40%2) |
35%2) |
40%3) |
|
Linewidgh 1)
,cm -1 |
10...100 |
4...6 |
6...8 |
|
Pump laser requirements |
|
Laser type |
Nd:YAG |
|
Wavelength,nm |
355 |
355 |
532 |
|
Max pump energy,mj |
100 |
100 |
150 |
|
Operating pump intensity,MW/cm2 |
60 |
60 |
80 |
|
Pulse width, nsec |
4...12 |
|
Beam quality |
multimode
homogeneous
spatial beam
profile |
|
Beam divergence |
less than 1 mrad |
1) Depends on output
wavelength; specified for 10 nsec pump pulse
2) At 500nm
3) At 850nm
